BL0223L-W LED Adjustable Optics Thermoplastic Emergency Unit

• Universal knockout pattern on back plate for surface mount. Snaps into place making internal electrical connections.
• Suitable for wall or ceiling mount.
• Knockout for conduit applications.

Illumination

• Long life, efficient, ultra bright white LED lamp heads.
• 1.0 watt (8 LEDs x 0.125 watt) per head.
• High performance chrome-plated metallized reflector and plastic lens for optimal light distribution.

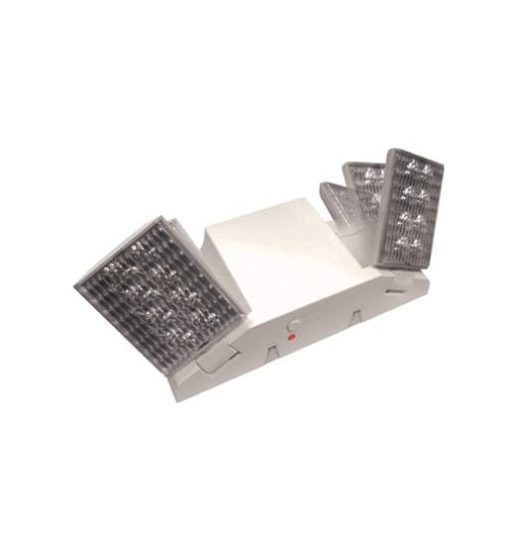

• Two adjustable LED lamp heads provide optimal center-to center spacing.

Housing

• Injection-molded, engineering-grade, 5VA flame retardant, high-impact resistant, thermoplastic in white.

Electrical

• Dual 120/277 voltage.
• Charge rate/power “ON” LED indicator light and push-to test switch for mandated code compliance testing.
• 3.6V long life, maintenance-free, rechargeable NiCd battery.
• Internal solid-state transfer switch automatically connects the internal battery to the LED lamps heads for minimum 90-minute emergency illumination.
• Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.

Warranty & Listings

• Five year warranty on all electronics and housing. Battery prorated for five years.
• UL (standard)/CSA (optional) listed for damp locations 0°C – 50°C).
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local, and State Codes.
