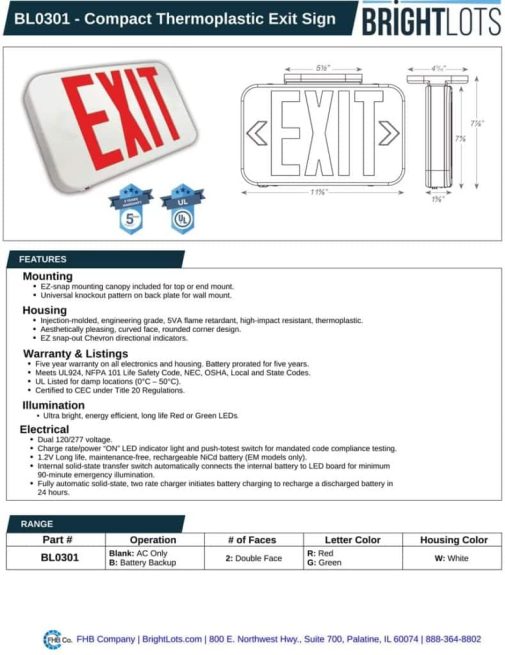

BL0301 – Compact Thermoplastic Exit Sign

• EZ-snap mounting canopy included for top or end mount.
• Universal knockout pattern on backplate for a wall mount.

Housing

• Injection-molded, engineering-grade, 5VA flame retardant, high-impact resistant, thermoplastic.
• Aesthetically pleasing, curved face, rounded corner design.
• EZ snap-out Chevron directional indicators

Warranty & Listings

• Five year warranty on all electronics and housing. Battery prorated for five years.
• Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local, and State Codes.
• UL Listed for damp locations (0°C – 50°C).
• Certified to CEC under Title 20 Regulations.

Illumination

• Ultra bright, energy efficient, long life Red or Green LEDs.

Electrical

• Dual 120/277 voltage.
• Charge rate/power “ON” LED indicator light and push-to test switch for mandated code compliance testing.
• 1.2V long life, maintenance-free, rechargeable NiCd battery (EM models only).
• Internal solid-state transfer switch automatically connects the internal battery to the LED board for a minimum 90-minute emergency illumination.
• Fully automatic solid-state, two-rate charger initiates battery charging to recharge a discharged battery in 24 hours.
