BLRTAM-620156B414** 20 ft. 6″ Butt Dia.,0.156 ga. 1 FIXTURE, LED Ready Light Pole

POLE ASSEMBLY

POLE FINISH

Height: 20 ft
Gauge: 0.156″
Bottom OD: 6″
Bolt Circle: 9″ – 10″
Base Square: 9.75″
Bolt Projection: 2.75″
Anchor Bolts: 1″ x 36″ x 4″

Pole Shaft: Shaft and arm are constructed of a seamless extruded tube of 6063 Aluminum Alloy per ASTM B221. The shaft assembly is full-length heat-treated after the base is welded to produce a T6 temper. The powder coating material is thermosetting polyester powder. A minimum coating thickness of 2.0 mils is maintained for aluminum. The application of powder is electrostatically applied by a closed-loop automated powder coating system.

Finish Options: Dark Bronze, Black, Gray, White, and Satin Aluminum finish available. Please call for details. (888)364-8802

4-Bolt Cast Aluminum Base Plate:4-Bolt Cast Aluminum Base Flange of Alloy 356-T6 with Aluminum Bolt Covers (Alloy 356-F) and Stainless Steel Hex Head Attaching Screws.

Hardware Kits: Include four (4)L-shaped Steel Anchor Bolts conforming to AASHTO M314-90 Grade 55. Ten Inches (10°) of the threaded end will be galvanized per ASTM A153. Kits will contain four (4) Hex Nuts, four (4) Lock Washers, and four(4) Flat Washers (all components Galvanized Steel). A bolt circle template will be provided.

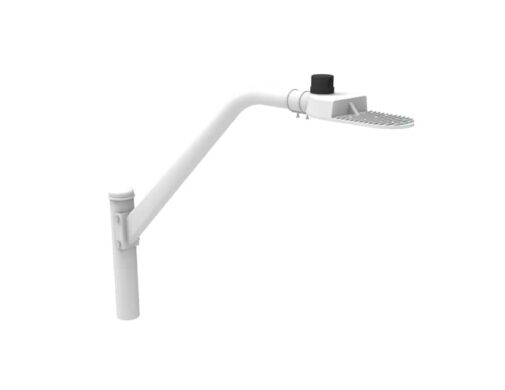

Fixture Mounting options: Designed for 1 LED fixture with slip fitter
