POLE FINISH

Height: 20 ft
Gauge: 0.156″
Bottom OD: 6″
Bolt Circle: 9″ – 10″
Base Square: 9.75″
Bolt Projection: 2.75″
Anchor Bolts: 1″ x 36″ x 4″
Pole Shaft: Shaft and arm are constructed of a seamless extruded tube of 6063 Aluminum Alloy per ASTM B221. The shaft assembly is full-length heat-treated after the base is welded to produce a T6 temper. The powder coating material is thermosetting polyester powder. A minimum coating thickness of 2.0 mils is maintained for aluminum. The application of powder is electrostatically applied by a closed-loop automated powder coating system.
Finish Options: Dark Bronze, Black, Gray, White, and Satin Aluminum finish available. Please call for details. (888)364-8802
4-Bolt Cast Aluminum Base Plate:4-Bolt Cast Aluminum Base Flange of Alloy 356-T6 with Aluminum Bolt Covers (Alloy 356-F) and Stainless Steel Hex Head Attaching Screws.
Hardware Kits: Include four (4)L-shaped Steel Anchor Bolts conforming to AASHTO M314-90 Grade 55. Ten Inches (10°) of the threaded end will be galvanized per ASTM A153. Kits will contain four (4) Hex Nuts, four (4) Lock Washers, and four(4) Flat Washers (all components Galvanized Steel). A bolt circle template will be provided.

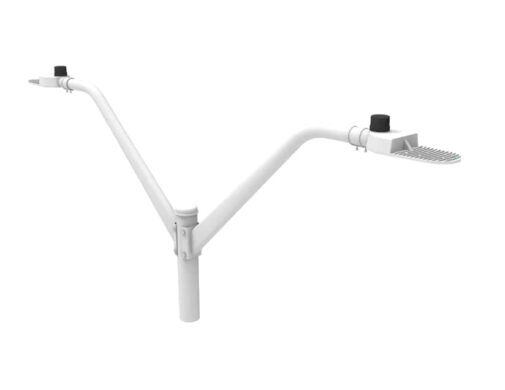

Fixture Mounting options: Designed for 2 LED fixtures with slip fitters
A MGT. HGT. | B WALL GA. | C BUTT SQ. | J ARM LENGTH | TOTAL LUM. WT. | Max. EPA 90 | Max. EPA 100 | Max. EPA 110 | Max. EPA 120 | Max. EPA 130 | PART NO. |
---|---|---|---|---|---|---|---|---|---|---|
20 | 0.156” | 6 | 4’ | 55 | 5.6 | 4.0 | 3.6 | 2.6 | 2.0 | BLRTAM-620156B424** |
25 | 0.188” | 6 | 4’ | 40 | 5.8 | 4.0 | 3.5 | 2.4 | 1.6 | BLRTAM-625188B424** |
30 | 0.188” | 8 | 4’ | 40 | 4.2 | 2.8 | 2.4 | 1.7 | 1.1 | BLRTAM-830188B424** |
35 | 0.188” | 8 | 4’ | 45 | 4.9 | 3.3 | 2.8 | 1.9 | 1.2 | BLRTAM-835188B424** |
