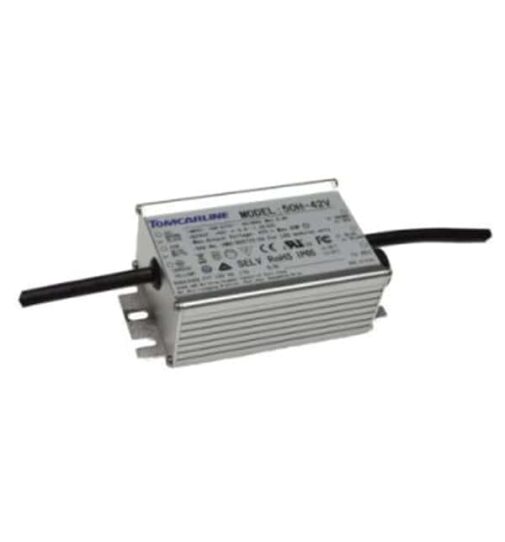

BLWP80 LED Driver – 80 Watt, 42V

$100.00

Title	Qty	Price
For BLWP LED Driver	11 +	$3.00 flat $97.00

SKU: BLWP80 Category: LED Retrofit

Features

Universal AC input/Full rang 90～305VAC
Built-in active PFC function
Protections: Short circuit/Over current /Over voltage/Over temperature
Cooling by free air convection
Built-in 3 in 1 dimming function (1～10VDC or 10V PWM signal or resistance)
Metal case, IP65 design for indoor or outdoor installations
Suitable for outdoor LED street lighting,outdoor LED and moving sign applications

80H-42
V: IP65Level，Io adjustable through potentiometer
D: IP65Level，3 in 1 dimming function (1～10VDC,10V PWM signal and resistance)，Io adjustable
through potentiometer

SPECIFICATIONS

Parameter Name	Min.	Typ.	Max.	Unit
Input Voltage	100	110;230	277	Vac
Input Current	---	0.4	1.1	A
Power Factor	0.95	0.98	0.99	PF
THD	5	10	15	%
Frequency Rang	47	50\60	63	Hz
Output no-load Voltage	43	46	48	Vdc
Output Serving Voltage	36	42	43	Vdc
Output Current	-3%	1.9	+3%	Adc
Overshoot	---	---	10	%
Ripple & Noise	---	---	300	mV
No Load Power	---	0.5	2	W
Efficiency	88	91	---	%（230VA）
Over Current Protection	---	---	110	%
Short Circuit Protection	Constant Current limiting, recovers automatically after fault condition is removed
Inrush Current(Max.)	Cold Start 70A(twidth=480us measured at 50% Ipeak)at 230Vac
MAX. No. of PSUs on 16A Circuit Breaker	3 units (circuit breaker of type B)/6 units (circuit breaker of type C) at 230VAC
