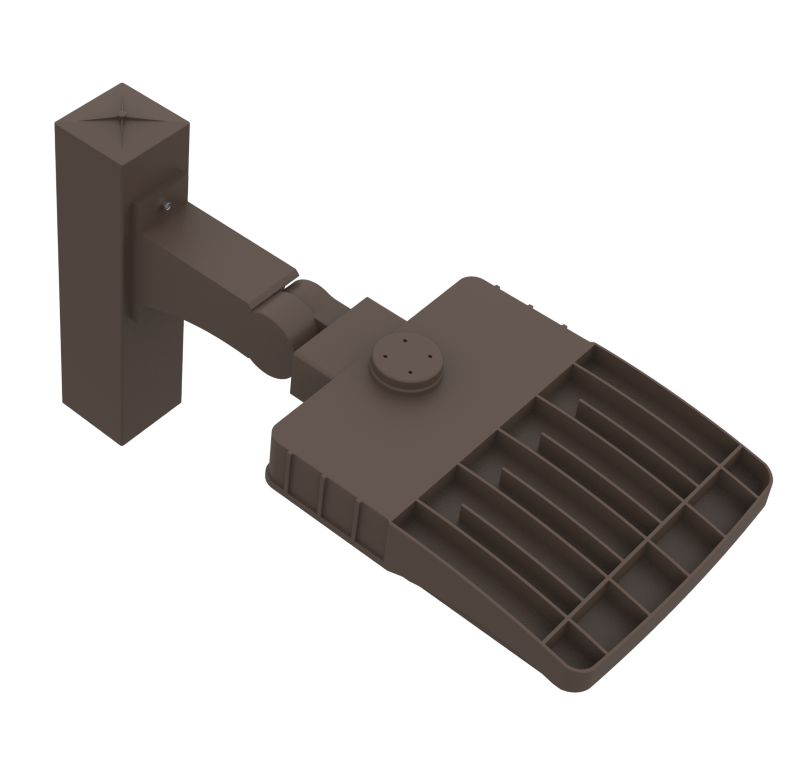

Unity Installation Square Pole. Adjustable mounting bracket brightlots.com
Unity LED Shields BrightLots.com
Square Steel Pole Category

Build Your Single LED Pole Kit – Square Steel Poles

BrightLots Single Led Square Pole Kit

$944.00

Price will update as selections are made. The price shown is for the default selections below.

Step 1
Select Square Steel Pole Height
Step 2
Select Fixture Wattage. Please note there are 3 fixture options; each has a range of adjustable wattage ranges.
Step 3
Photcell Optional
Step 4
Distribution Options—Type 3 is typical
T3 for Unity Led
1 × Type III Distribution
$0.00
Unity Type IV Distribution
1 × Type IV Distribution
$12.00
Unity Type V Distribution
1 × Type V Distribution
$12.00
Step 5
Pole & Kit Powder Coat Finish. Standard finish is dark bronze.
Unity LED Pole Kit Finish Color
1 × Unity LED, Pole Kit Finish - Dark Bronze
$0.00
Unity LED Pole Kit Black Finish
1 × Unity LED, Pole Kit Finish - Black
$150.00
Unity LED Pole Kit White Finish
1 × Unity LED, Pole Kit Finish - White
$150.00
Unity LED Pole Kit Finish Gray
1 × Unity LED, Pole Kit Finish - Gray
$150.00
Add to quote

The Brightlots Unity Series Single LED Pole Kit offers a powerful, customizable, and reliable lighting solution for parking lots, roadways, and general area lighting. This kit pairs a robust commercial-grade Square Steel Pole with the advanced, field-adjustable Unity Series LED Area Light. Use the configurator above to select the pole height, fixture wattage, distribution, and control options to perfectly match your project requirements.

Key Benefits:

  • Total Customization: Choose from 5 specific pole heights, 3 wattage groups, 3 color temperatures (3000K, 4000K, 5000K), 3 distribution types (T3, T4, T5), and 4 finish colors (Dark Bronze, Black, White, Silvery Grey).
  • High Performance: The Unity LED is designed to replace 250W to 1000W HID luminaires, with lumen output ranging from 11,000 to 48,000 lumens.
  • Certified Quality: Fixture is UL and DLC certified, and backed by a 5-year limited warranty.

LED Pole Kit Details

BrightLots UL DLC Unity Led Fixture

UNITY LED Area Light Highlights

Core Performance & Value

  • High Power Replacement: Designed as a cost-effective replacement for traditional 250W to 1000W HID luminaires.
  • High Lumen Output: Offers a high light output ranging from 11,000 to 48,000 lumens.
  • High Efficacy (LPW): Reaches up to 181 LPW (for the 80W, 4000K, CRI70 setting).
  • Wattage Selectable: Available in three selectable size ranges, allowing installers to adjust power between options (e.g., 80W/100W/120W/150W or 170W/200W/220W/240W, or 240W/260W/280W/310W).
  • CCT Selectable: Includes CCT Select Technology, allowing color temperature adjustment between 3000K, 4000K, and 5000K. The default setting is 5000K.

⛏ Key Design & Installation Features

  • Dimmable: Comes with a 0-10V dimmable driver (dimming wire does not lead out from the fixture).
  • Durable Construction: Built with a die-cast aluminum body featuring a heatsink and flow-through venting for optimal thermal management and durability.
  • Rating & Warranty:
    • Includes a 5-Year Limited Warranty.
    • Suitable for wet locations (outdoor rating).
    • Operating temperature range from -40C to 45C or (-40F to 113F)
  • Certifications: UL, DLC listed, and ROHS compliant.
  • Mounting Flexibility: Supports various mounting options, including Slipfitter Mount (SF), Square and Round Pole Mount Arm (PA), Trunnion Mount (TR), Adjustable Square and Round Pole Mount Arm (AA), Universal Bracket (UB), and Wall Mount (WM).

⚙ Control & Accessories

  • Integrated Controls: Features advanced control options such as **photocell** and **motion sensors**.
  • Color Finish Options: Standard finish is **Dark Bronze (D)**, with other available options including White (W), Black (B), and Silvery Grey (SG).
  • Light Distribution Types: Available in Type II (T2), Type III (T3), Type IV (T4), and Type V (T5) distributions.

Square Steel Pole (PPSQH Series) Highlights

Core Construction & Quality

  • Material: Cold-rolled, commercial quality carbon steel tubing.
  • Steel Grade: Conforms to ASTM A500 Grade B.
  • Gauge Options: Available in 11 gauge or 7 gauge.
  • Welding: All welds conform to AWS D1.2 using ER70S-6 electrodes.

Base & Hardware

  • Base Plate: Features a 4-Bolt Steel Plate Base.
  • Flange Material: Fabricated hot-rolled carbon steel conforming to ASTM A36 or equivalent.
  • Base Cover: Includes a 2-piece automotive grade ABS Base Cover.
  • Anchor Bolts: Supplied with 4 J bolts, AASHTO M314-90, Grade 55.
  • Hardware: Fully galvanized hardware supplied.

Finish Options & Durability

  • Powder Coating: Finished with weather-resistant TGIC polyester thermoset powders.
  • Application: Electrostatically applied, oven cured, and bonded to a minimum dry film thickness of 2.0 mils.
  • Standard Finish Options:
    • Powder coat: Bronze (BM), Black (BA), White (BH), Gray (SC).
    • Powder coat over galvanized: Galvanize only (00G), Bronze (BMG), Black (BAG), White (BHG), Gray (GCG).

Fixture Mounting & Flexibility

  • Side Drill Mount: Poles can be supplied drilled per your specification.
    • Supported Configurations: 1 fixture, 2 at 90°, 2 at 180°, 3 at 90°, and 4 at 90° degrees.
    • Note: A luminaire drilling template must be supplied at time of order.
  • Tenon Mount: Pole top tenons can be supplied.
    • Standard tenon options include: 2 3/8" O.D. x 4" (T204), 2 7/8" O.D. x 4" (T304), 3 1/2" O.D. x 6" (T356), and 4" O.D. x 6" (T406).
  • Pole Cap: Includes a removable pole cap.

Available Accessories & Options

Accessory Description / Benefit
Image of Unity LED fixture with light shields Electrical Box & GFI Plugs Weather-resistant GFI Duplex Receptacles (GF1, GF2) for convenient outdoor power access directly on the pole. Available as Box Only or with protective In-Use Covers.
Unity Shields (Visors) Light-blocking shields that attach directly to the fixture to reduce light trespass and control light distribution in sensitive areas. Essential for dark-sky compliance.
Please use "Add to Quote" if you require any of these accessories.
Download Unity LED specifications Download Square Steel Pole Specifications UNITY LED Installation Instructions
