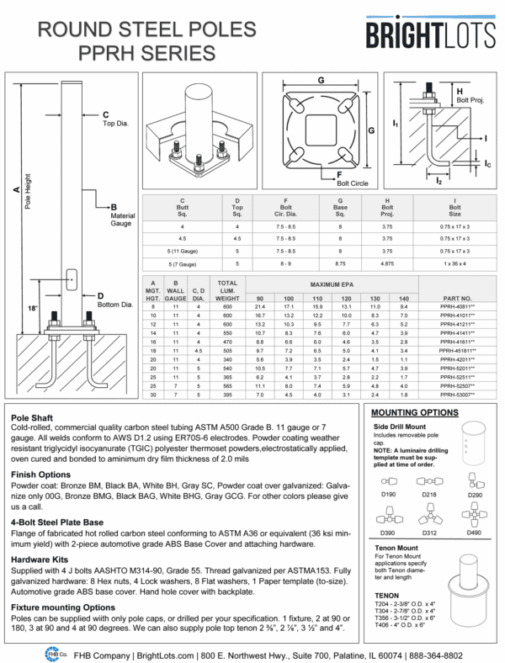

Height: 30 ft
Top OD: 5″
Bottom OD: 5″
Bolt Circle: 8″ – 9″
Base Square: 8.75″
Bolt Projection: 4.875″
Anchor Bolts: 1″ x 36″ x 4″
Finish Options: Powder coat: Bronze BM, Black BA, White BH, Gray SC, Powder coat over galvanized: Galva-nize only 00G, Bronze BMG, Black BAG, White BHG, Gray GCG. Please note galvanizing will increase lead-time by 2-3 weeks. For custom colors please give us a call.
Pole:Cold-rolled, commercial-quality carbon steel tubing ASTM A500 Grade B. 11 gauge or 7 gauge. All welds conform to AWS D1.2 using ER70S-6 electrodes. Powder coating weather resistant triglycidyl isocyanurate (TGIC) polyester thermoset powders, electrostatically applied, oven cured and bonded to a minimum dry film thickness of 2.0 mils
Hardware Kit: Supplied with 4 J bolts AASHTO M314-90, Grade 55. Thread galvanized per ASTMA153. Fully galvanized hardware: 8 hex nuts, 4 Lock washers, 8 flat washers, 1 Paper template (to-size). Automotive-grade ABS base cover. Handhole cover with backplate.
Base Plate : Flange of fabricated hot rolled carbon steel conforming to ASTM A36 or equivalent (36 ksi min-imum yield) with 2-piece automotive grade ABS Base Cover and attaching hardware.
Base Cover: Powder Coated Steel or UV Resistant ABS
