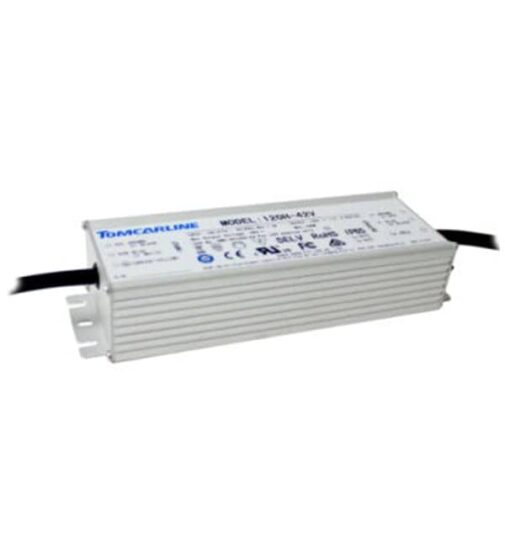

BLWP120 LED Driver - 120 Watt, 42V - Parking Lot Lighting, Maintenance

BLWP120 LED Driver – 120 Watt, 42V

$112.50

Title	Qty	Price
For BLWP LED Driver	11 +	$3.00 flat $109.50

SKU: BLWP120 Category: LED Retrofit

Features

Universal AC input/Full rang 90～305VAC
Built-in active PFC function
Protections: Short circuit/Over current/Over voltage/Over temperature
Cooling by free air convection
Built-in 3 in 1 dimming function (1～10VDC or 10V PWM signal or resistance)
Metal case, IP65 design for indoor or outdoor installations
Suitable for outdoor LED street lighting, outdoor LED and moving sign applications
5 years warranty

120H-42
V: IP65Level，Io adjustable through built-in potentiometer
D: IP65Level，3 in 1 dimming function (1～10VDC,10V PWM signal and resistance)

SPECIFICATIONS

Parameter Name	Min.	Typ.	Max.	Unit
Input Voltage	100	100;230	277	Vac
Input Current	---	0.6	3	A
Power Factor	0.95	0.98	0.99	PF
Frequency Rang	47	50\60	63	Hz
Output no-load Voltage	43	46	48	Vdc
Output Serving Voltage	36	42	43	Vdc
Output Current	-3%	2.85	+3%	Adc
Overshoot	---	---	10	%
Ripple & Noise	---	---	300	mV
No Load Power	---	0.5	2	W
Efficiency	88	91	---	%（230VA）
Over Current Protection	---	---	110	%
Over Temperature Protection	Shut down O/P voltage, recovers automatically after temperature goes down
Short Circuit Protection	Constant Current limiting, recovers automatically after fault condition is remove

BLWP120 LED Driver – 120 Watt, 42V
